Single Gap Metal Ceramic Gas Discharge Tube 24x10mm 600V BL600-F14-A0 For Low Voltage AC Power Supply
Description
Products are widely used in the fields of electronic equipment signal and power surge overvoltage protection. Among them, freewheeling interrupting cermet gas discharge tube products are used for N- PE lightning overvoltage protection of neutral line in AC power supply system. Multi-gap cermet gas discharge tube can be applied to AC power supply system L-L, L-N, L-PE and DC power supply system surge overvoltage protection, which will bring 1 field technology update in power supply system surge overvoltage protection industry.Body size is φ24X10mm.
Specification
Discharge tube for lightning overvoltage protection (SPD) of low-voltage AC power supply N-PE
| P/N | Dc Spark-over Voltage | Impulse Spark-over Voltage | Nominal impulse | Max impulse | Insulation resistance |
| 100V/s | 1KVμs | discharge current (8/20μs)In | discharge current | (100 Vdc) |
| BL230-F14-A1 | 230V±20 | ≤700V | 80KA | 100KA | ≥1000MΩ |
| BL600-F14-A0 | 600V±20 | ≤1400V | 80KA | 100KA | ≥1000MΩ |
| BL600-F14-A2 | 600V±20 | ≤1400V | 80KA | 120KA | ≥1000MΩ |
| BL600-F14-A3 | 600V±20 | ≤1400V | 80KA | 120KA | ≥1000MΩ |
| BL800-F14-A0 | 800V±20 | ≤1600V | 80KA | 100KA | ≥1000MΩ |
| BL2500-F14-A0 | 2500V±20 | ≤4000V | 50KA | 100KA | ≥1000MΩ |
Company products
1. Ceramic gas discharge tube for lightning overvoltage protection of signal port
(1) DC breakdown voltage: 70V ~ 3600V;
(2) Flow rate: 0.5KA ~ 20KA;
(3) encapsulation: SMD, DIP
2. Ceramic gas discharge tube for lightning overvoltage protection (SPD) of low-voltage AC power supply system
2.1 Series Varistor Use Products
(1) DC breakdown voltage: 90V ~ 1500V;
(2) Package method: DIP (can solder pins according to requirements)
2.2 Discharge Tube for Lightning Overvoltage Protection (SPD) of Low Voltage AC Power Supply N-PE
(1) Voltage: ≥ 500Vac
(2) Uc=275Vac, If=105A
2.3 Low-voltage AC power supply L-L, L-N, L-PE, N-PE lightning overvoltage protection (SPD) multi-gap discharge tube
2.4 Low Voltage AC Power Supply L-L, L-N, L-PE, N-PE Lightning Overvoltage Protection (SPD) Multi-gap Discharge Tube Application Proposal
2.5 Low Voltage AC Power Supply Lightning Overvoltage Protection PCB Board (SPD) Multi-gap Discharge Tube and Suggested Use Scheme Lightning Overvoltage Protection Device (SPD) for Low Voltage Power Supply
2.6 OEM Multi-Gap Discharge Tube Design
3. Lightning overvoltage protection multi-gap discharge tube for -48V DC power supply
4.Surge-protective Devices - Component
BL90-003-xxBL800-513-xxBL800-730-xxBL800-S05-xxBL800-S06-xx*BL8G091#$BL90-013-xxBL8G601#$BL90-004-xxBL70-112-xxBL600-633-xx*BL8G152#$BL70-109-xxBL70-106-xxBL70-030-xxBL70-013-xxBL70-003-xxBL90-030-xxBL600-B13-xxBL3600-295-xxBL600-333-xxBL600-168-xxBL600-109-xxBL600-107-xxBL600-106-xxBL600-F14-xxBL600-182-xxBL350-182-xxBL600-105-xxBL800-295-xxBL800-219-xxBL800-185-xxBL800-182-xxBL800-164-xxBL800-126-xxBL800-112-xxBL800-104-xxBL600-295-xxBL350-185-xxBL600-185-xxBL90-050-xxBL600-164-xxBL600-126-xxBL600-112-xxBL600-104-xxBL350-295-xxBL350-164-xxBL350-126-xxBL350-112-xxBL1500-295-xxBL1500-164-xxBL90-112-xxBL600-219-xxBL1000-164-xxBL1000-133-xxBL1000-126-xxBL600-013-xxBL1000-168-xxBL350-219-xxBL350-013-xxBL600-003-xxBL500-107-xxBL500-105-xxBL500-013-xxBL470-003-xxBL350-109-xxBL1200-5KA-xxBL350-003-xxBL2500-10KA-xxBL250-013-xxBL230-B13-xxBL1500-633-xx*BL1500-333-xxBL150-050-xxBL3600-10KA-xxBL1500-126-xxBL150-003-xxBL150-004-xxBL150-030-xxBL150-109-xxBL150-112-xxBL1500-003-xxBL1500-004-xxBL1500-013-xxBL1500-112-xxBL150-013-xxBL8G801#$

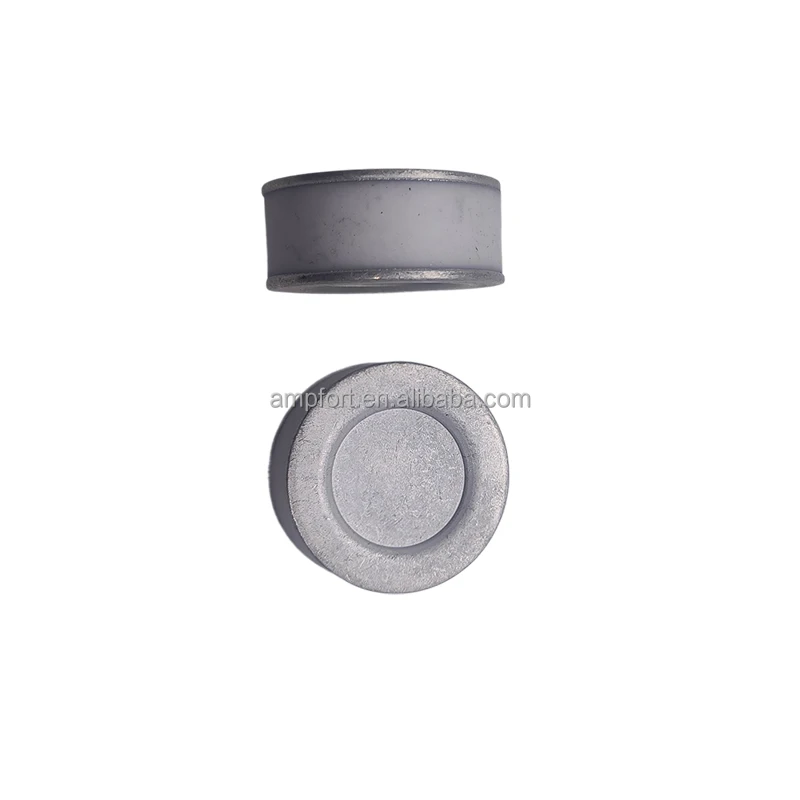

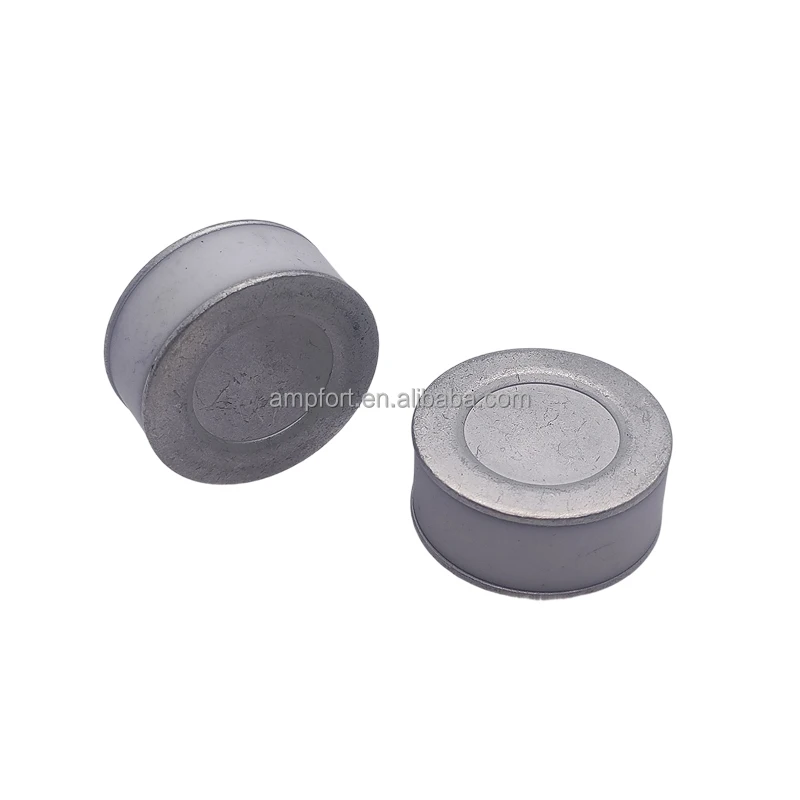

Product Photos
